Group Items on a Group Panel

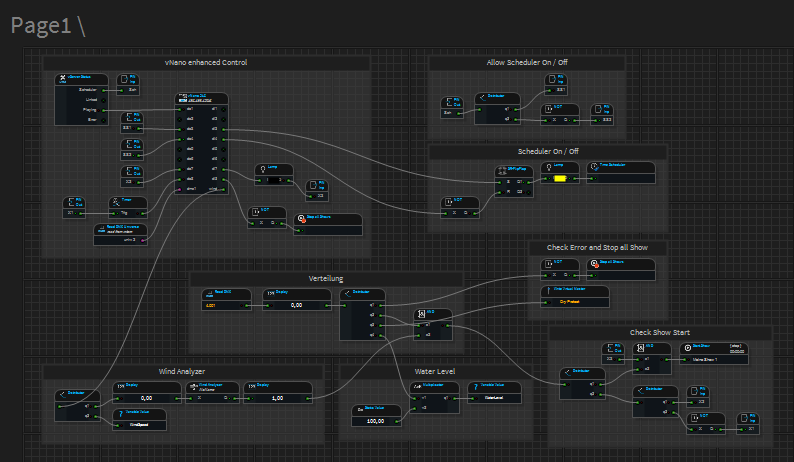

To create more organization and clarity, you can visually and logically group parts of your circuit using a Group Panel. All items assigned to a Group Panel will move together with it.

A Group Panel is not a container in the traditional sense. You can still move individual elements grouped within a Group Panel separately and even place them outside of the panel.

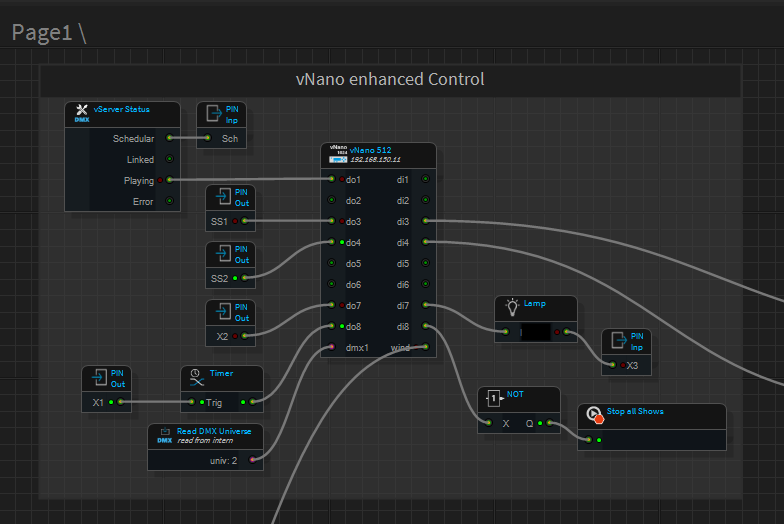

Create a Panel

To create a Group Panel, select the desired items and then right-click. From the menu, choose 'Add Group Panel'.

Delete a Panel

To dissolve a group, select only the panel and not the items assigned to it. Right-click and choose "Delete."

The panel will be removed, and the association of the items will be cleared.

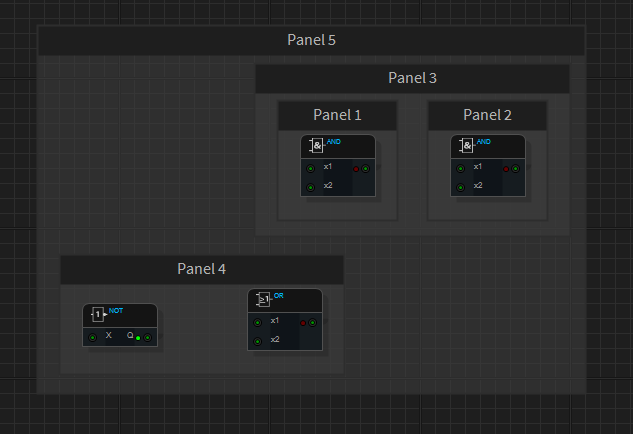

It is also possible to group panels within panels. To do this, select only the respective panels (not the controls within the panels) and group them into a new panel. Dissolving the panels works the same way as described above.
