Transformation

PreviousRotate ObjectsNextCAD Editor Snapping

The transformation window displays the current transformation applied on your selection, relative to its parent (if any, else relative to the World Space). This is called Object-Space transformation.

It can be used to position with precision objects (or to correct a position).

Relative positioning

The transformation window displays the relative transformation of your selection within its parent. (also known as Object-Space)

This means the transformation window allows you to control the position of the selected object within its parent and not the global transformation from the World Space.

Usage

The transformation is made of translation and rotation along 3 axes (X, Y, Z), where each of the axes can be adjusted by entering a value and clicking the "Apply" button.

Position

To adjust the translation position from the transformation window, set the X, Y, or Z position value as needed:

Rotation

To adjust the rotation angle from the transformation window, you can either:

  • Set the desired value and press the "Apply" button,

  • Or click on the square button to apply 45° increment.

    • Left click to rotate clockwise (CW).

    • Right click to rotate counterclockwise (CCW).

Size

An additional Size parameter is available to adjust the scale of the selected object (where 2 means 2 times bigger and 0.5 means 2 times smaller).

Reset

To reset each type of transformation, double click on "Position", "Rotation" and/or "Size".

Apply the reset by clicking the "Apply" button.

Cancel

Until you click on the "Apply" button, new transformation values are not applied.

To cancel the update, select another object (from any view or 3D hierarchy).

Unit

If needed, you can change the current value unit. Right-click on the value to select another unit:

Note: the units displayed depend on your Depence preference.

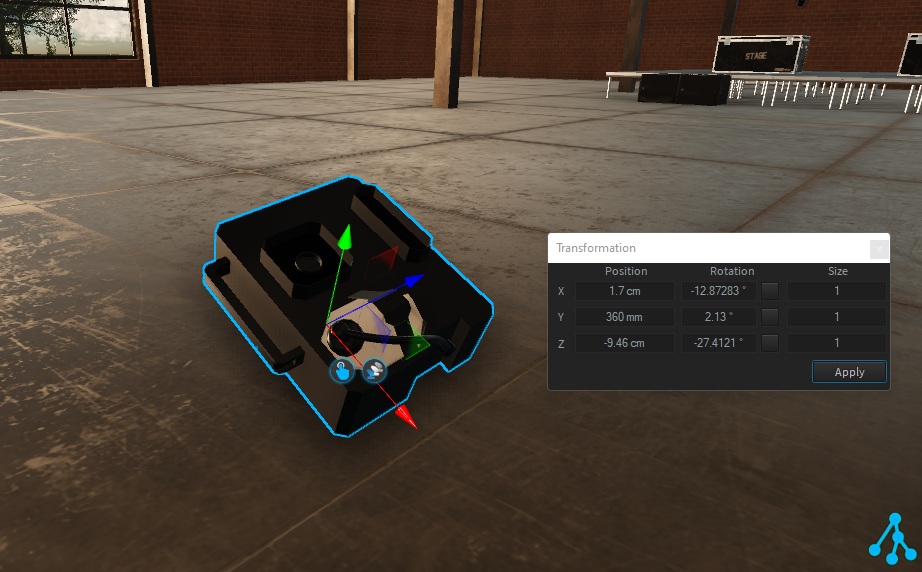

Transformation window

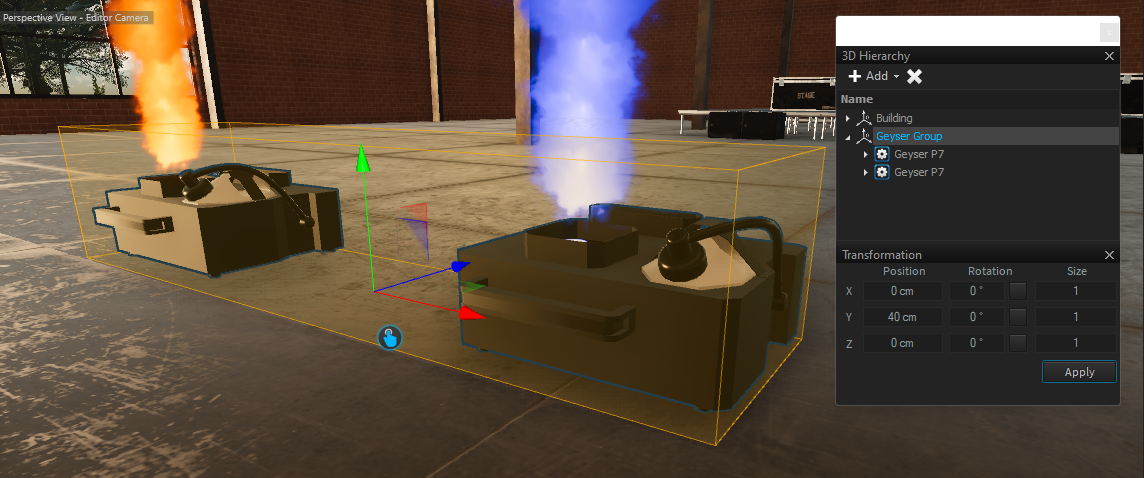

The group father is positioned at 40cm on Y (height)

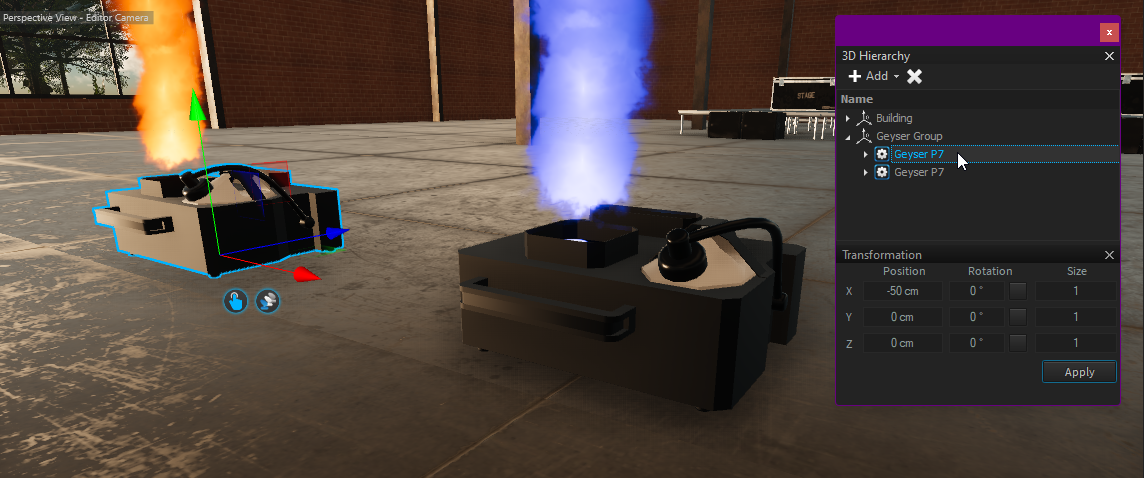

The first Geyser P7 is positioned at -50cm on X, within its parent. Position from World Space is 40cm on Y (inherit from its parent) and -50cm on X (inherit from itself)

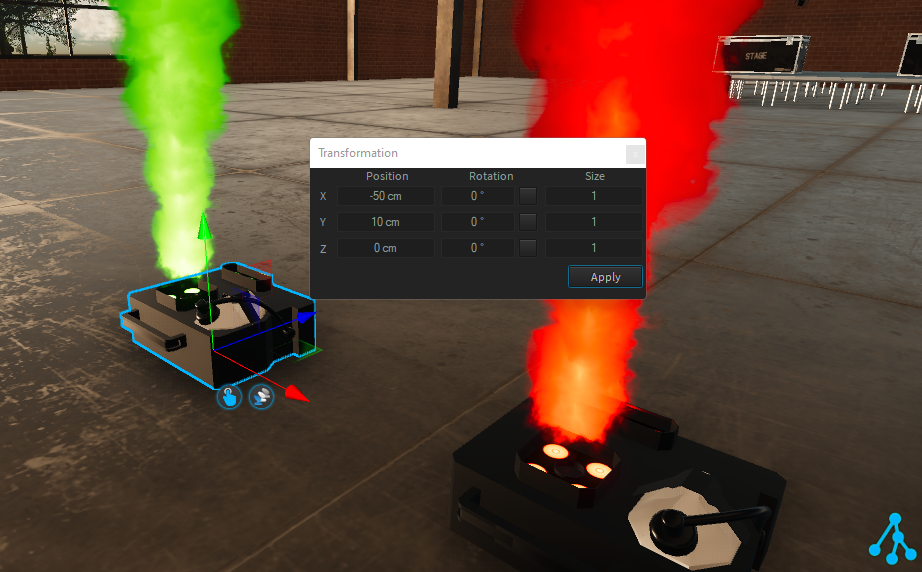

2 fixtures, where position is set manually to X -50cm and X +50cm

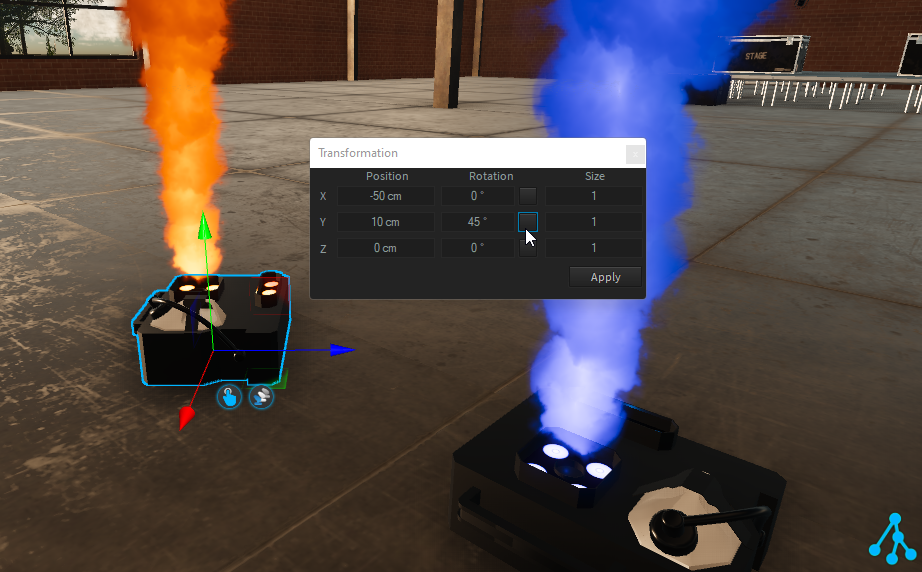

Applying 45° increment on Y axis

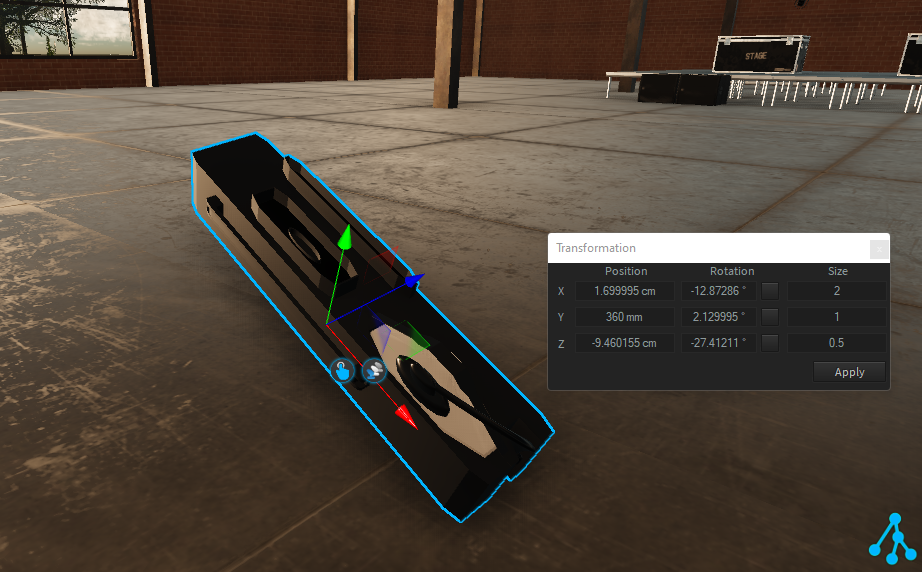

Size transformation

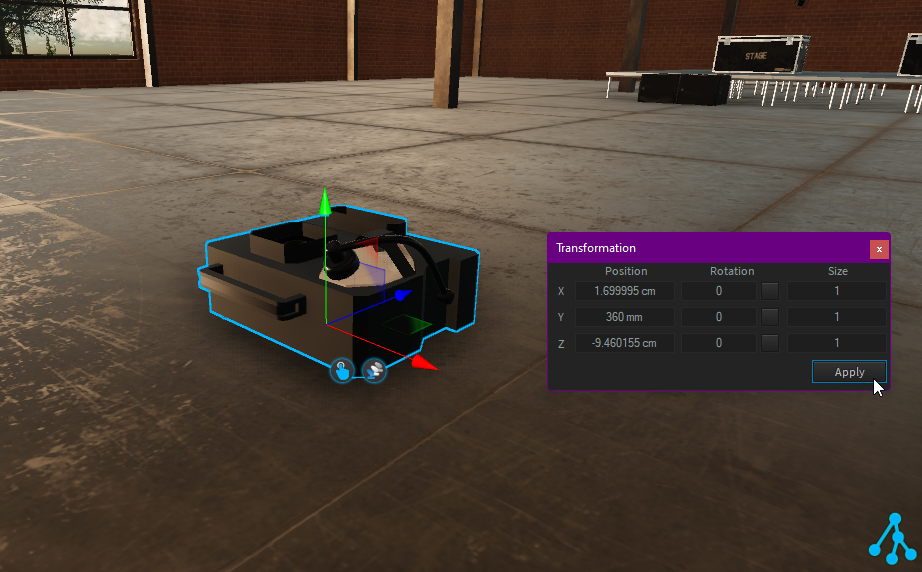

A double click on "'Rotation" resets axis rotation to 0

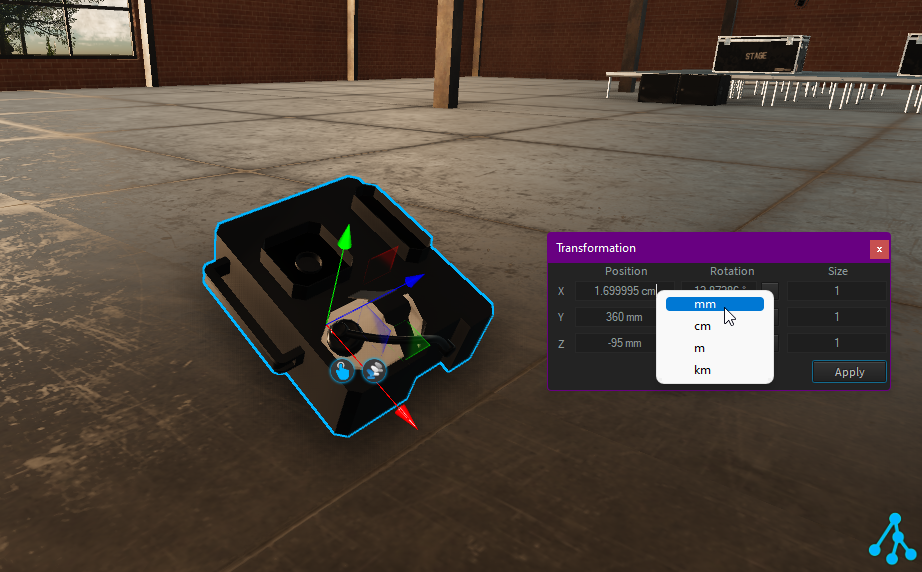

Unit change on the position for the X axis

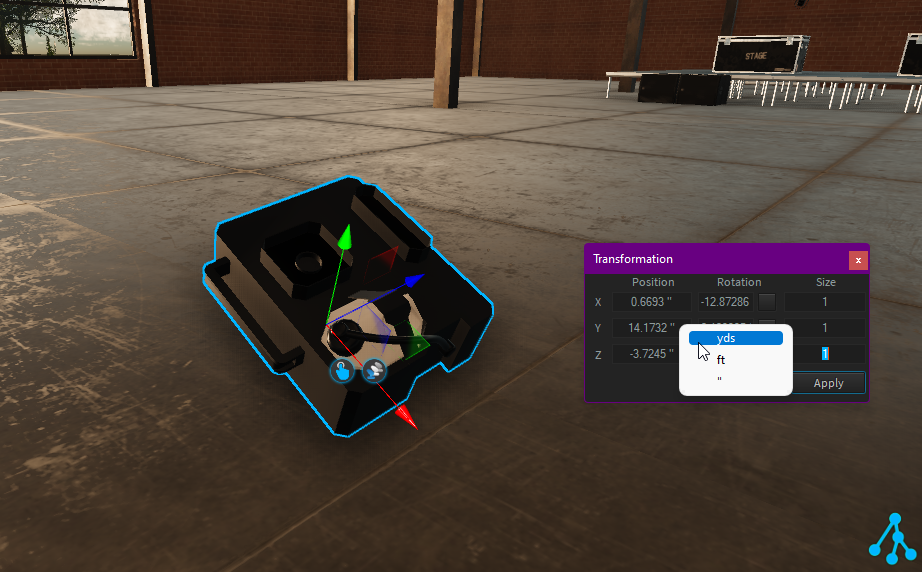

Imperials unit
