Outputs

PreviousEventsNextConditions

Last updated 7 months ago

Write DMX Universe

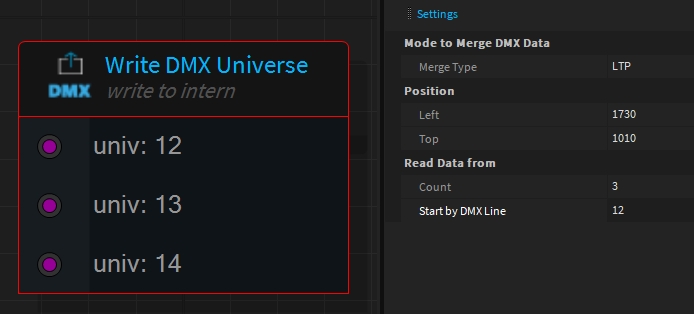

A complete DMX universe can be connected to the input. Then it´s mixed into the internal DMX buffer. The number of universes to be connected can be set via Count. With Start by DMX Line the index of the first universe.

Variable Text

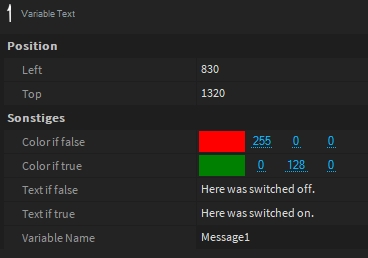

Writes a text to a variable named memory cell from which it can be displayed in the User Live Panel. A text and a text color can be set if the condition is true or false. Pay attention to the upper-lower case of the variables name.

Write MIDI Note

Sends a MIDI note with a velocity value from the MIDI Output.

Write MIDI Controller

Writes a MIDI controller value to the MIDI output.

Variable Value

Writes the value at the module input into a variable. Pay attention to the upper - lower case of the variables name.

Writes the module input value to an analog output from vServer4.

Converts the module input value to a DMX value (0-255) and writes it to a DMX address.

Writes a module input value to a virtual master. To do this, drop a virtual master from the repository to this module.

Analog Output

Write DMX

Write Virtual Master
