  1. Hardware & Control

Scripting

PreviousLive-PanelNextEditing the scheduler with the additional 'ShowOrganizer' program

Depence offers an extensive script language to execute several control related commands for selection, creating effects and many more.

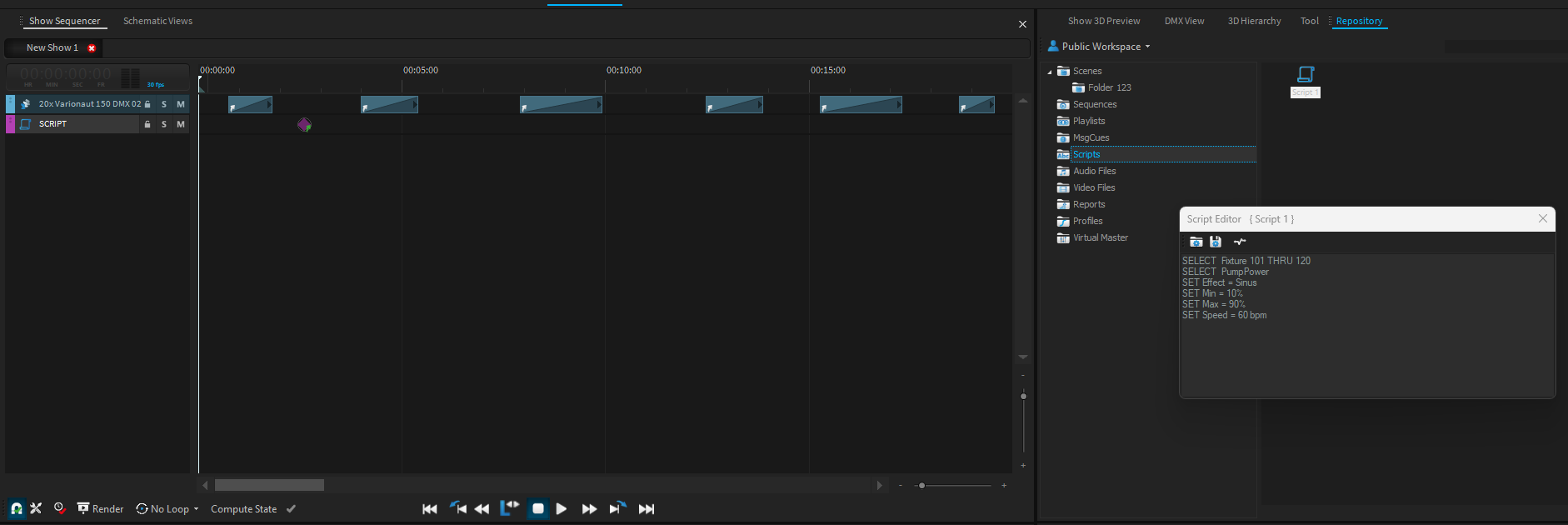

Using script commands, you can accomplish some interesting tasks that aren't possible with simple scenes. For this purpose, you use the Depence script language and create script files in the 'Scripts' folder within the repository. These script files can be executed within a sequence in a script track.

The following commands are available:

SELECTION OF FIXTURES

  • SELECT FIXTURE 101,102,103

  • SELECT FIXTURE 101 THRU 120

  • SELECT FIXTURE 101 THRU 120 odd

  • SELECT FIXTURE 101,102,110 THRU 120

  • SELECT FIXTURE 101 THRU 120 STEP 4

  • SELECT FIXTURE var1 THRU var2

  • SELECT FIXTURE var1,var2,var3

SELECTION OF CHANNELS

  • SELECT Red

  • SELECT PumpPower

  • SELECT Pan

  • SELECT Iris

SHORTCUTS

  • Set @Full

SET NORMAL DMX VALUE - Special characters are { = at @ to }

  • SET Value = 255

  • SET Value = 100%

  • Set Value = 30 bpm

  • Set Value = 45°

  • Set Value = 10 Hz

  • Set Value = @FeatureName

EFFECT SETTINGS

  • SET Effect = Sinus

  • SET Min = 10%

  • SET Max = 90%

  • SET Center = 50%

  • SET Amplitude = 50%

  • SET Speed = 60 bpm

  • SET Phase = 360°

  • SET Offset = 360°

  • SET Wings = 1

  • SET Blocks = 1

  • SET CutLeft = 0%

  • SET CutRight = 100%

  • SET Width = 100%

TIME SETTINGS

  • SET Fadetime = 2,5s

    • Set the fade time of the immediately following command to 2.5 seconds. (Afterwards, the fade time will reset and needs to be set again for the next command)

  • SET DelayTime = 3,2s

    • Set the delay time of the immediately following command to 3.2 seconds. (Afterwards, the delay time will reset and needs to be set again for the next command)

ADDITIONAL SET COMMANDS

  • SET MASTER VMastername = 100%

  • SET INDEX = 20

    • Sets the counter for the next selection index to 20.

ARRANGE INSTRUCTIONS

  • Set Panorama = |

  • Set Panorama = \

  • Set Panorama = /

  • Set Panorama = >

  • Set Panorama = <

  • Set Panorama = X

VARIABLES

  • Var {name} = {value}

    • Private variable within a script.

  • PVar {name} = {value}

    • Public variable within a project (LogicModule, LivePanel).

ADDITIONALS COMMANDS

  • Play "ShowName"

    • Plays a show.

  • Stop "ShowName"

    • Stops a specific show.

  • Stop

    • Stops all running shows.

  • Timeplaner start {play,run}

    • Activates the daily planner (vServer4 only).

  • Timeplaner stop {end}

    • Deactivates the daily planner (vServer4 only).

  • Call "ScriptName"

    • Calls the script specified in quotation marks. (Note: not recursion-safe).

Example 1:

Clear

SELECT Pan

Set Value = 0°

SELECT Tilt

SET Min = 0°

Set Max = 45°

Set Effect = "Sinus"

Set Speed = 15 bpm

Example 2 :

Clear

SELECT Fixture 101 THRU 110 odd

SELECT Pan

Set Value = 0°

SELECT Tilt

SET Min = 0°

Set Max = 45°

Set Effect = "Sinus"

Set Speed = 15 bpm
