Connect a digital Wind Anemometer

PreviousLogic TestNextConnect an analog Wind-Anemometer to a v:Server

Last updated 1 year ago

Was this helpful?

Wind Detection with Digital Anemometer

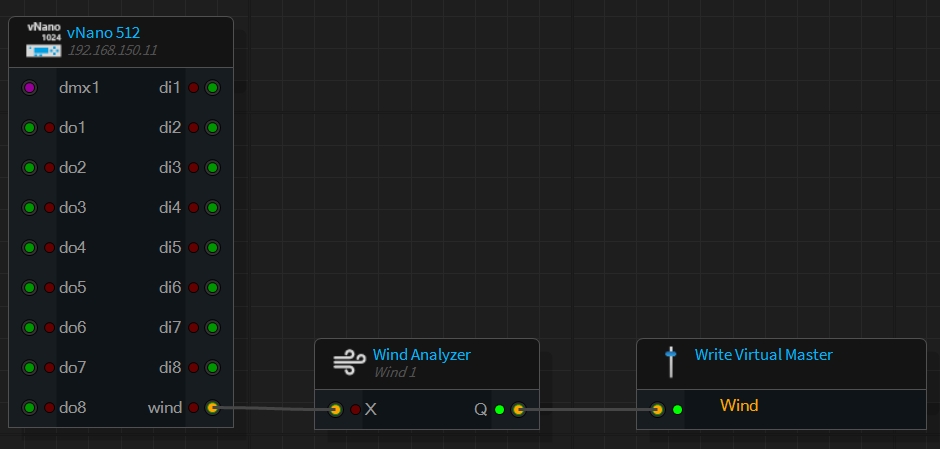

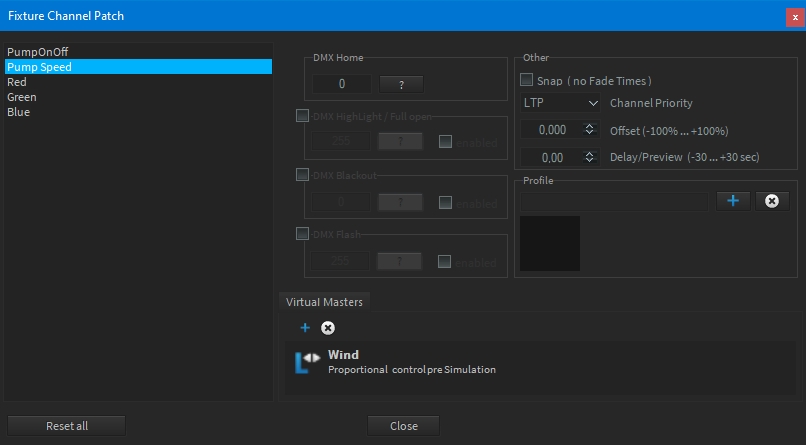

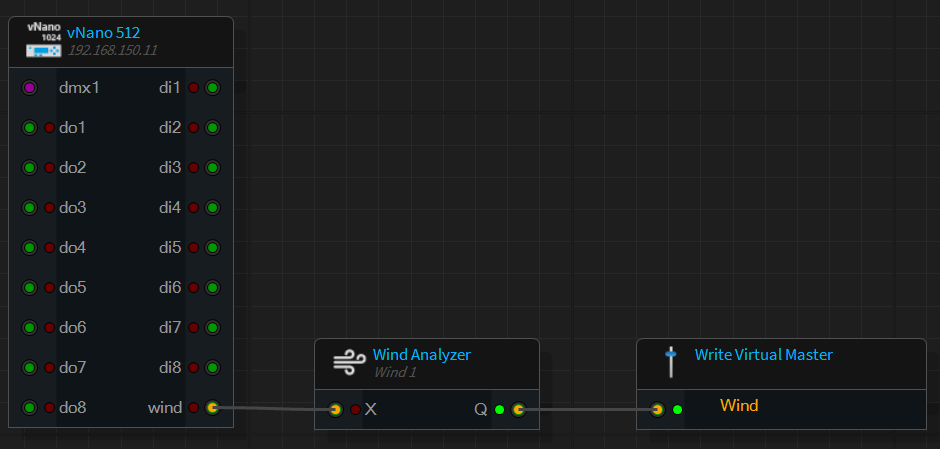

Connect a Digital Anemometer on Digital Input 1 on the real vNano/wecs 512/1024. Connect a virtual Wind output in the LogicModule with the Wind Analyzer module. Connect a Wind Analyzer with a VirtualMaster Module and Drop a VirtualMaster "Wind" from the Repository to the LogicModule Item. Route in ChannelPatch the PumpSpeed Channel on VirtualMaster “Wind”
