  1. Tips & Tricks

Control Atmosphere by DMX

PreviousHow to export MVR to grandMA3NextCamera Remote Control

A quite often asked feature is, to get control over the sun position from the atmosphere-object by DMX. To do this you can use the powerful and flexible feature of Depence.

For animations and renderings its recommended to use keyframe animations on the timeline instead of DMX

Logic I/O

The Logic offers a node based solution to trigger and control and object or show elements.

  1. Navigate to the Hardware Tab or open the Hardware Manager over the Windows Menu

  2. Add a "Visualizer" Device

  3. In the Logic I/O tab we are now creating our nodes

Next to many control related nodes it also supports objects from the Scene to be controlled from any source. All object property which usually can be key-framed, can be also controlled by the logic. In this case we want to control our Atmosphere Object and its SunAltitude property. Simply drag the object from the 3D-Hierachy.

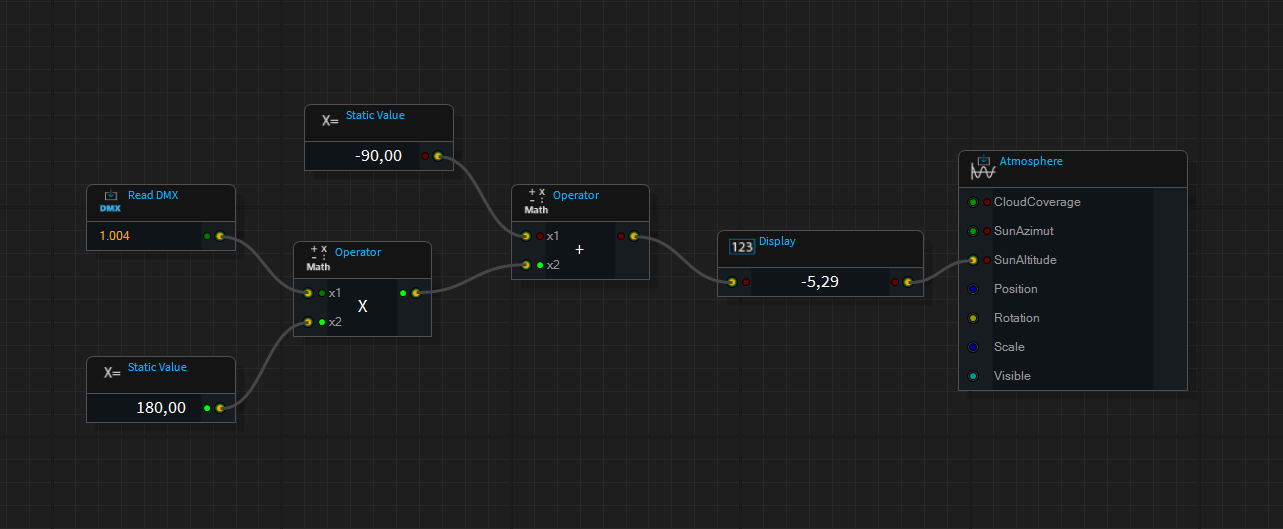

Now drag all other required elements into the graph and connect them like this:

In this graph we're reading a DMX value from 1.004. The output of a DMX element is always normalized between 0..1. Therefore we're going to multiply this by 180 which then gets add by -90 to be in a range of -90..90 degree. The Display element can be used to see the outgoing value (note to remove the "Transform in Range" check in its settings).

Logic
Graph to control the atmosphere by DMX

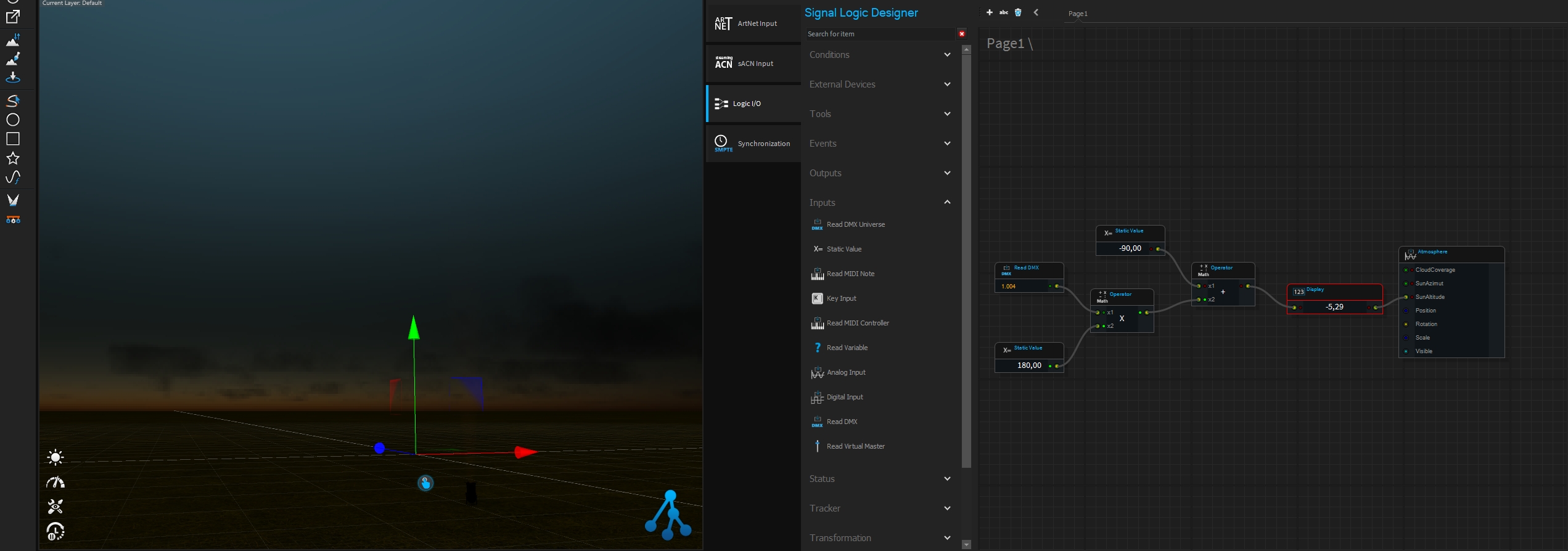

Page cover image
