# Spline Arrange

This Extension can be used on [Spline-Objects](https://help.depence.com/depence-construction/depence-splines) to make non-destructive arrangements on a [spline](https://help.depence.com/depence-construction/depence-splines).

## Step by Step

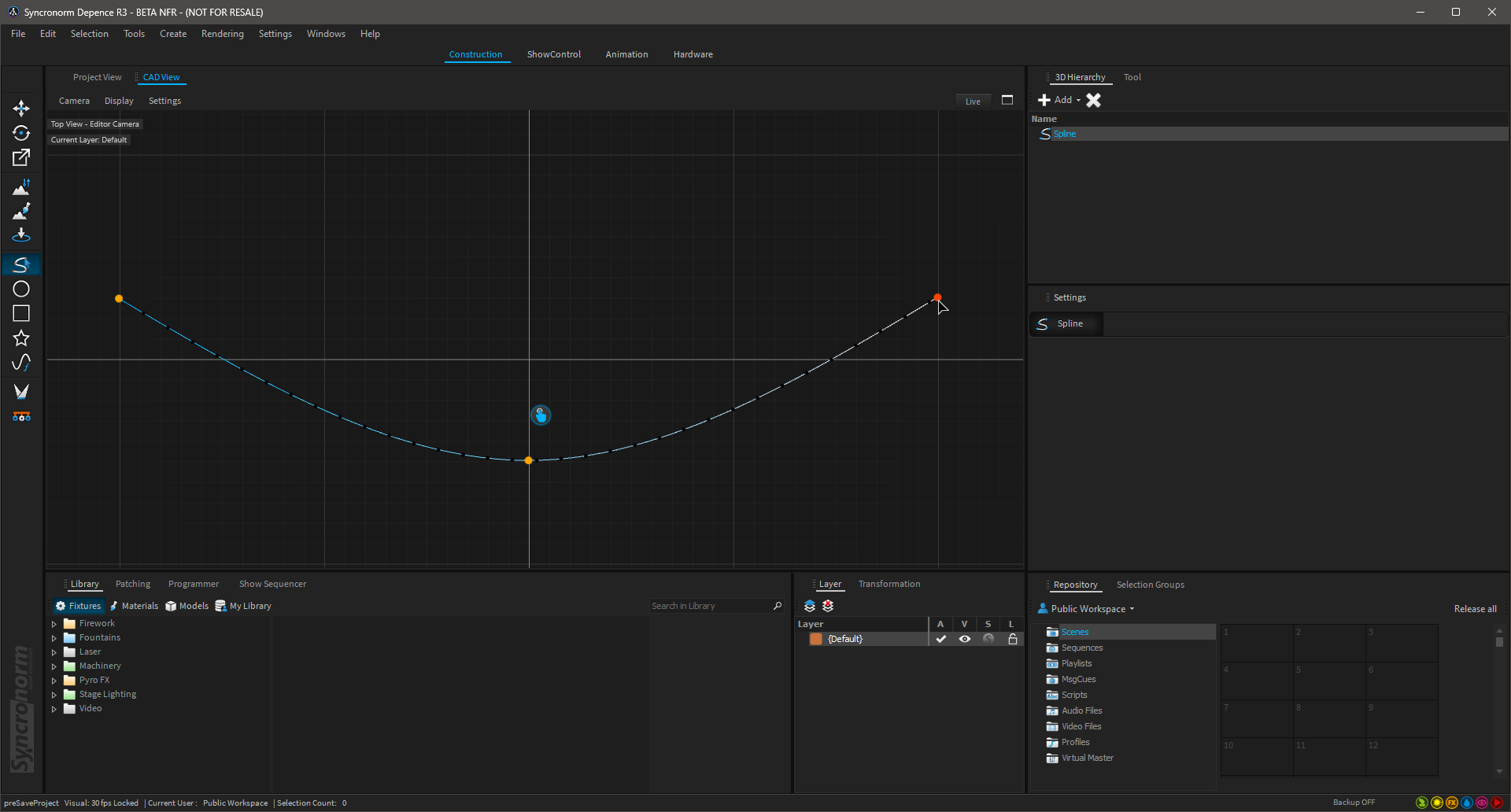

1. Draw or create a [spline](https://help.depence.com/depence-construction/depence-splines):<br>

   <figure><img src="https://content.gitbook.com/content/SJPsyh5CBOise9BtVNGO/blobs/lHwYWcWE8D4vExTmerYa/image.png" alt=""><figcaption></figcaption></figure>

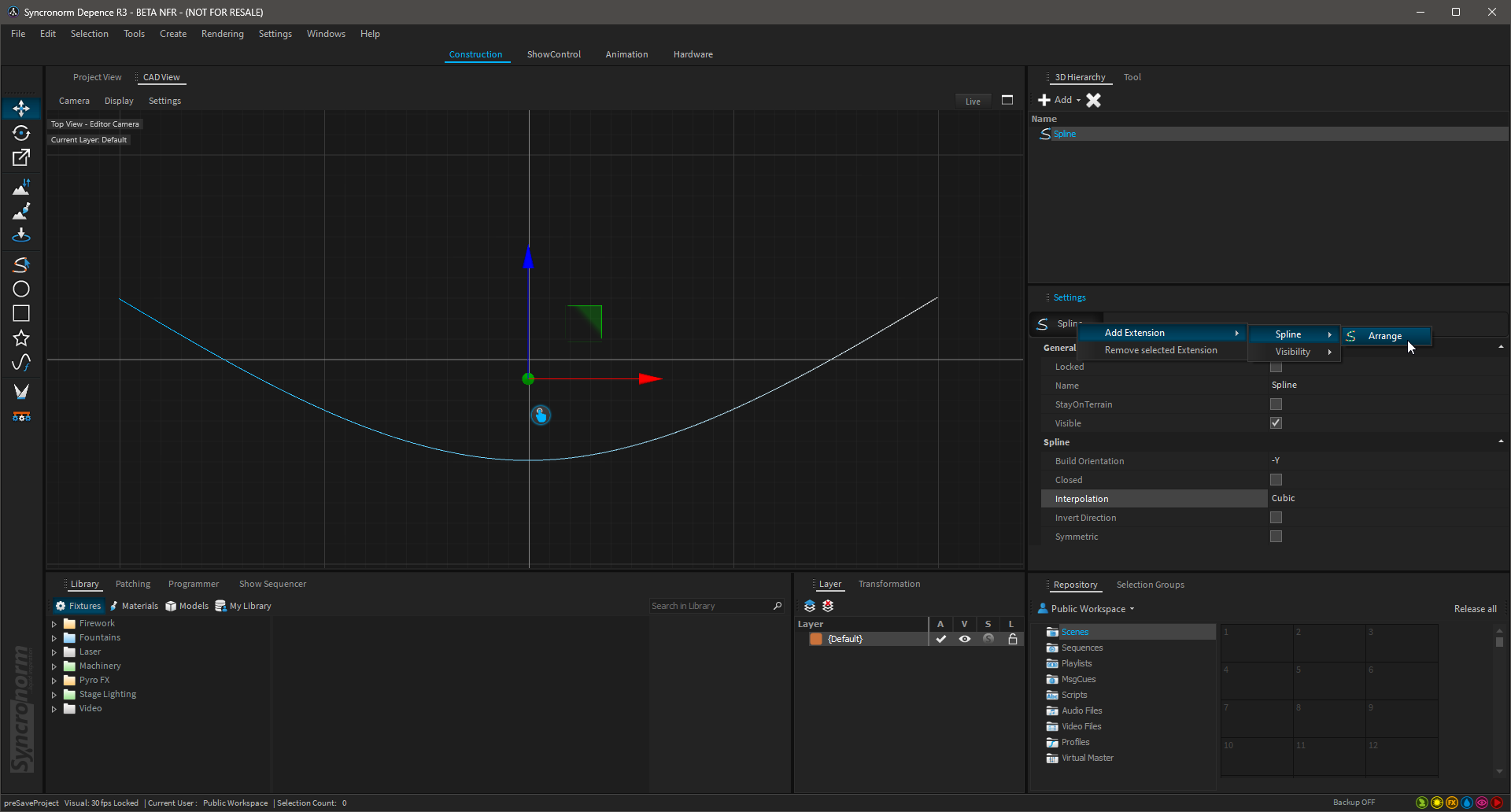

2. Apply the Spline-Arrange Extension *(right click on* [*spline*](https://help.depence.com/depence-construction/depence-splines) *object settings)*<br>

   <figure><img src="https://content.gitbook.com/content/SJPsyh5CBOise9BtVNGO/blobs/zYz4MVhshk8y008hpTU0/image.png" alt=""><figcaption></figcaption></figure>

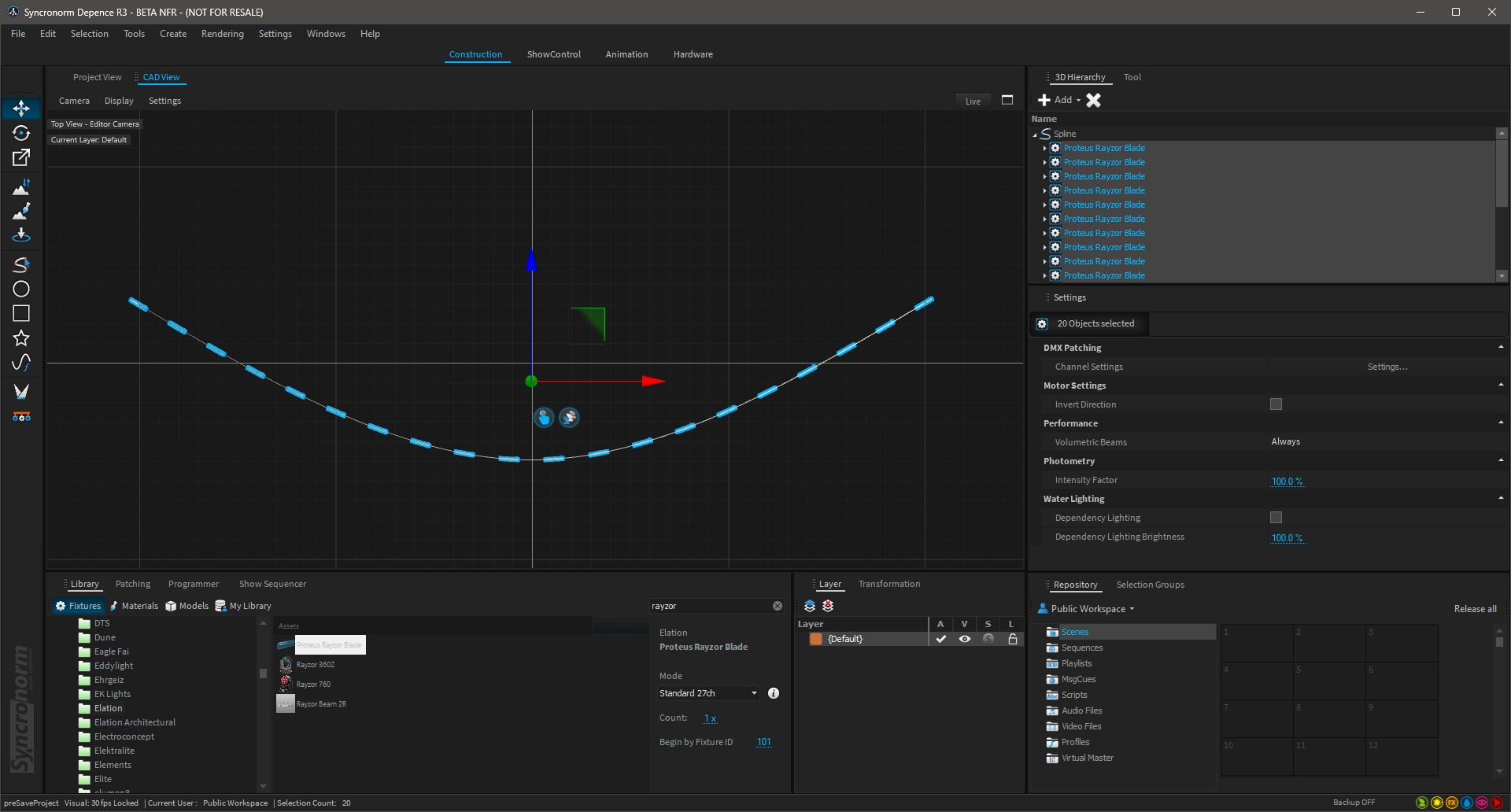

3. Add multiple objects as children under the [spline](https://help.depence.com/depence-construction/depence-splines) object: *(drag and drop from 3DHierarchy)*<br>

   <figure><img src="https://content.gitbook.com/content/SJPsyh5CBOise9BtVNGO/blobs/nVQRfomEbYyqHKDcZT7r/image.png" alt=""><figcaption></figcaption></figure>

Now all child objects of the [spline](https://help.depence.com/depence-construction/depence-splines) will always follow the path of the spline according to the extension settings:

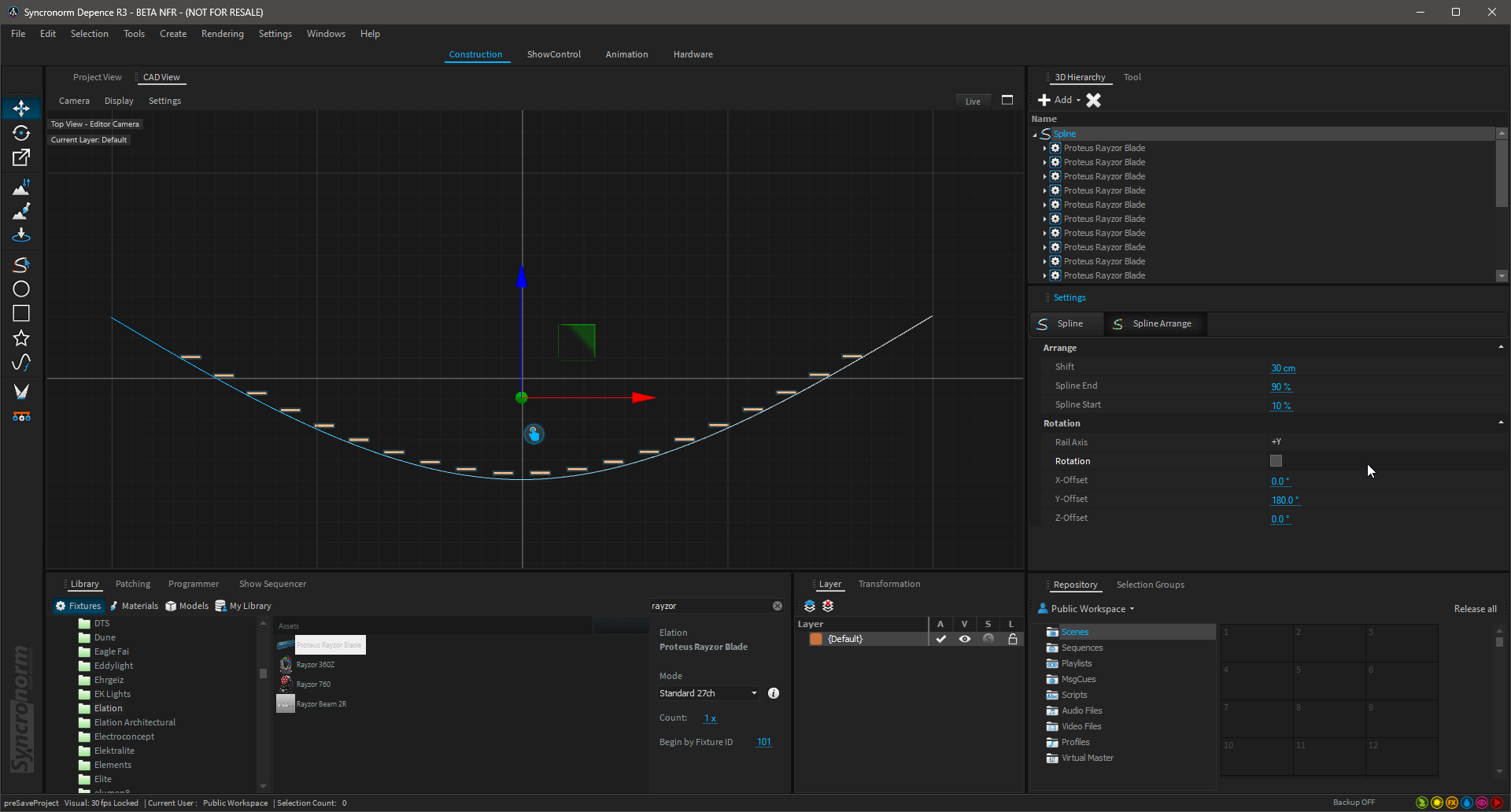

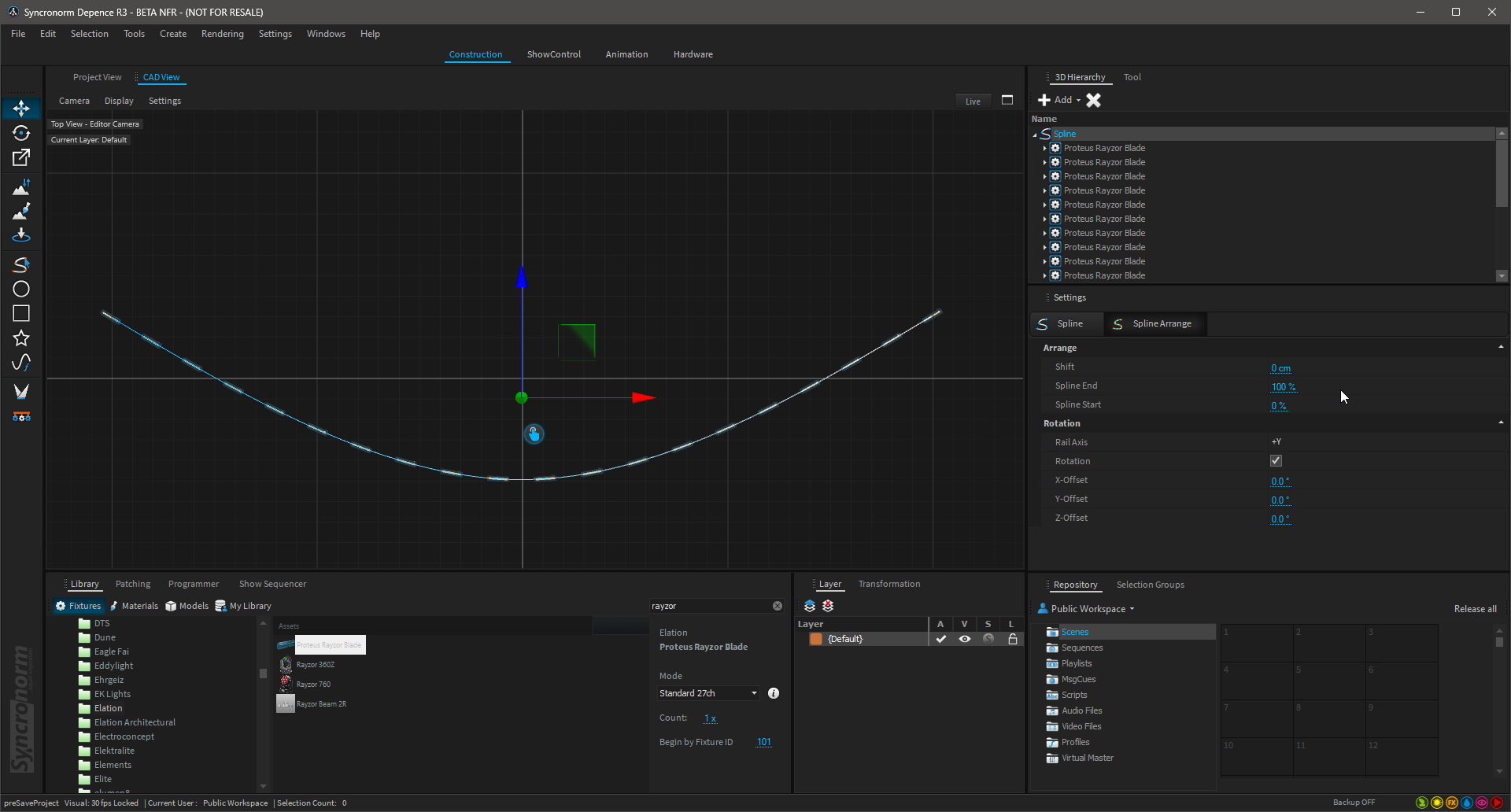

<div><figure><img src="https://content.gitbook.com/content/SJPsyh5CBOise9BtVNGO/blobs/VJK6hrK8bXPjtYsyHycU/image.png" alt=""><figcaption><p>Default Spline Arrange settings</p></figcaption></figure> <figure><img src="https://content.gitbook.com/content/SJPsyh5CBOise9BtVNGO/blobs/2AA9z9gKhoE5xJ6ZTEYm/image.png" alt=""><figcaption><p>Custom Spline Arrange settings</p></figcaption></figure></div>
