# Patching and Multiple DMX Address

## Modern Lighting Control Trends

In contemporary lighting setups, lighting consoles are increasingly controlling fewer pixel LEDs, while media servers are becoming the norm. To accommodate this shift, lighting fixture manufacturers have begun splitting DMX control, allowing for physical separation of control across different DMX universes. This trend is becoming more prevalent as fixtures often require control spread across multiple DMX universes.

### Lighting Fixture DMX Modes

A lighting fixture with multiple DMX addresses (pixel engine) typically has independent DMX modes for each part.

![Clay Paky HY B-Eye K25](https://content.gitbook.com/content/SJPsyh5CBOise9BtVNGO/blobs/7mXvSRDLVoYXnyuSvK4j/image.png)

For example, the Clay Paky HY B-EYE K25 consists of two main parts:

1. **Main Fixture**: Controls aspects like position, master intensity, and beam.
   * DMX Modes: Standard, Shapes
2. **Pixel Engine**: Provides independent control over LED pixels.
   * DMX Modes: RGB, RGBW

## Patching Fixtures with Multiple DMX Addresses

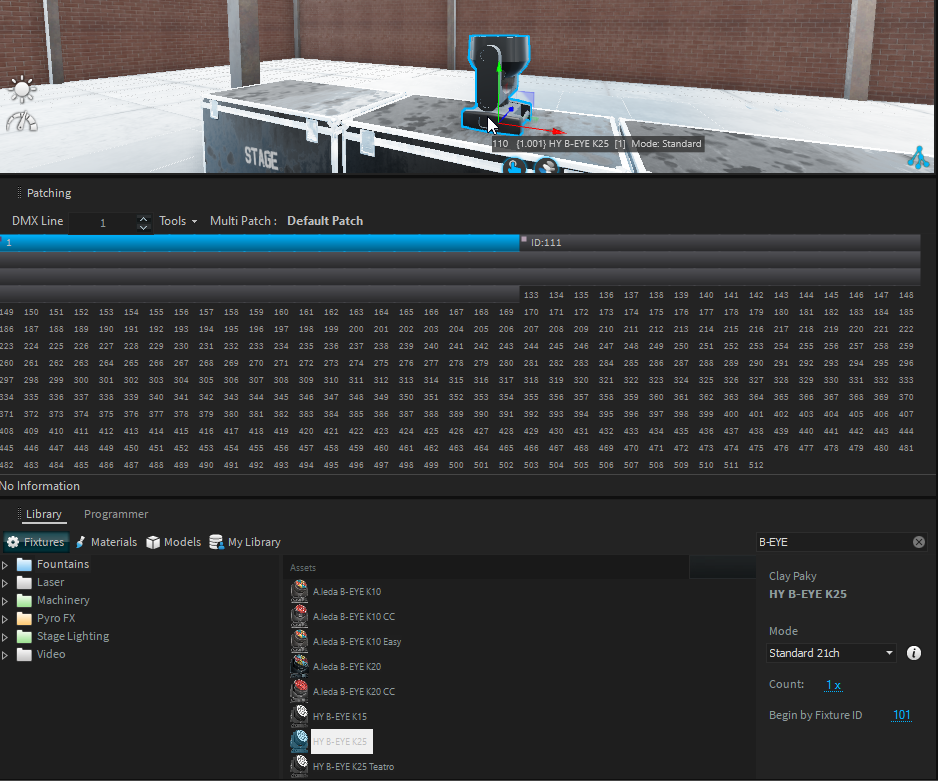

When patching a fixture with multiple DMX addresses, all parts of the fixture will be automatically patched, with the first DMX mode used by default for each sub-part.

### Managing Fixture Sub-parts (Pixel Engines)

The fixture sub-part, or pixel engine, functions like a separate fixture.

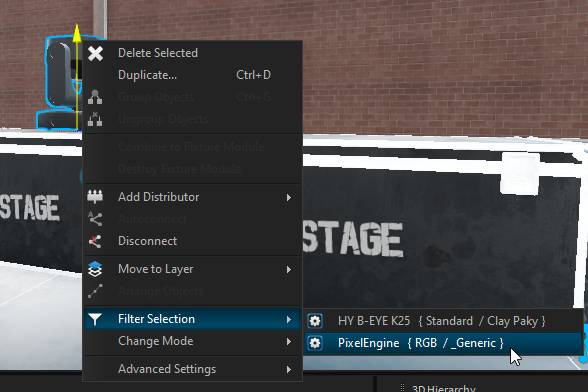

![Fixture sub-part is called "PixelEngine"](https://content.gitbook.com/content/SJPsyh5CBOise9BtVNGO/blobs/UYdjjt9OfybK0DovcUDM/image.png)

#### **DMX Mode Change**

To change the DMX mode, select the fixture sub-part *(pixel engine)* and change the DMX mode from the "Change Mode" option:

![Pixel Engine DMX modes](https://content.gitbook.com/content/SJPsyh5CBOise9BtVNGO/blobs/GTlREnYBjriucCGd7vGy/image.png)

#### **Patch Change**

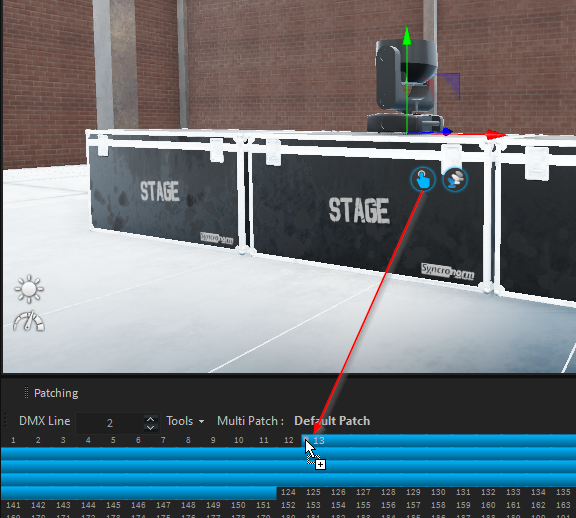

Once selected, patch the fixture sub-part (pixel engine) as needed by drag and dropping the hand icon from the project view:

![Fixture sub-part patch update](https://content.gitbook.com/content/SJPsyh5CBOise9BtVNGO/blobs/y5QXumk9lsn00xFI5zo1/image.png)

#### **Unpatch**

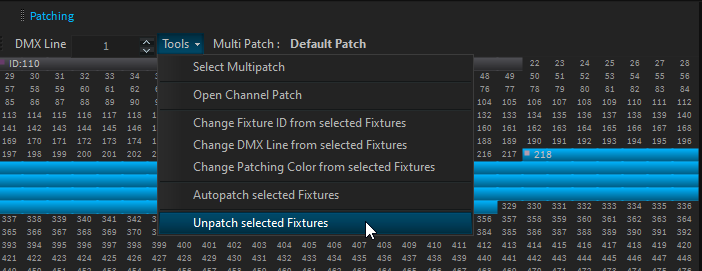

From the Patching window, you can unpatch the sub-part *(pixel engine)* if necessary.

![Unpatch the Pixel Engine](https://content.gitbook.com/content/SJPsyh5CBOise9BtVNGO/blobs/7ZWT8H6r7Lq6ecvpsyH3/image.png)

### Specific Fixtures

For certain fixtures where the Pixel Engine is deeply integrated with the Main Fixture for technical reasons, additional DMX modes are created without the Pixel Engine.

<div data-full-width="true"><figure><img src="https://2214631663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSJPsyh5CBOise9BtVNGO%2Fuploads%2FLwSgpy7m9UtDKtOq9bn1%2Fimage.png?alt=media&#x26;token=ea01730f-606d-4598-a295-f740121ab678" alt="" width="563"><figcaption><p>Additional Without Pixel Engines DMX modes</p></figcaption></figure></div>

These modes are labeled with the suffix "<mark style="color:blue;">**Without Pixel Engines**</mark>" and should be used when the Pixel Engines are unpatched to ensure the fixture operates correctly.

## Managing Fixture Patch by Batch

Managing multiple fixtures with one or more pixel engines can be complex, but using the filter selection function and the Fixture Manager window simplifies the process.

### **Filter Selection**

Use this function to select all pixel engines under your fixture simultaneously:

<div data-full-width="false"><figure><img src="https://2214631663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSJPsyh5CBOise9BtVNGO%2Fuploads%2Fa6HhYI6offlVJ6Gbrbow%2Fimage.png?alt=media&#x26;token=f8db2fbe-cbd6-46cf-9126-6701a14055af" alt=""><figcaption><p>Right click from a fixture selection,  <mark style="color:blue;">Filter Selection</mark> > <mark style="color:blue;"><strong>Beam Engine</strong></mark> to select the Beam pixel engine</p></figcaption></figure></div>

#### **Change DMX Mode**

Change the DMX mode for all selected pixel engines through the <mark style="color:blue;">**Change Mode**</mark> function:

<figure><img src="https://2214631663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSJPsyh5CBOise9BtVNGO%2Fuploads%2FYnrW9OQ0oWTPPMqQluYH%2F2025-03-11%2021_13_49-Syncronorm%20Depence%20R3%20NFR%20-%20(NOT%20FOR%20RESALE).png?alt=media&#x26;token=5145f417-0b7c-48bf-bceb-a25d041278e0" alt=""><figcaption><p>Right click after your filter selection, <mark style="color:blue;"><strong>Change Mode</strong></mark> > <mark style="color:blue;"><strong>Select the desire DMX mode</strong></mark></p></figcaption></figure>

### Reorder patch using the Fixture Manager

After setting the DMX modes, reorder the patch to ensure there are no gaps and that it meets your requirements, you can do it manually, or using the Fixture Manager

1. **Open Fixture Manager**: Access the [Fixture Manager window](https://help.depence.com/depence-program-overview/fixture-manager) to select all your fixtures and their associated pixel engines.
2. **Filter and Sort**: Use the filter option on any column to help sort and organize your selection.
3. **Repatch Fixtures**: Drag the hand icon from the project view and drop it into your patch. The order of selection will determine the patch order, so ensure it is in the desired sequence.

<figure><img src="https://2214631663-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FSJPsyh5CBOise9BtVNGO%2Fuploads%2FLt9z0CBha0Ax8gqE5Aq8%2Fimage.png?alt=media&#x26;token=7b4aec0d-14d0-4001-b209-7a6d67e2f729" alt=""><figcaption><p>Fixture manager selection drag and drop to patch</p></figcaption></figure>
