Nurbs

Nurbs are features that generate 3D geometry from splines.

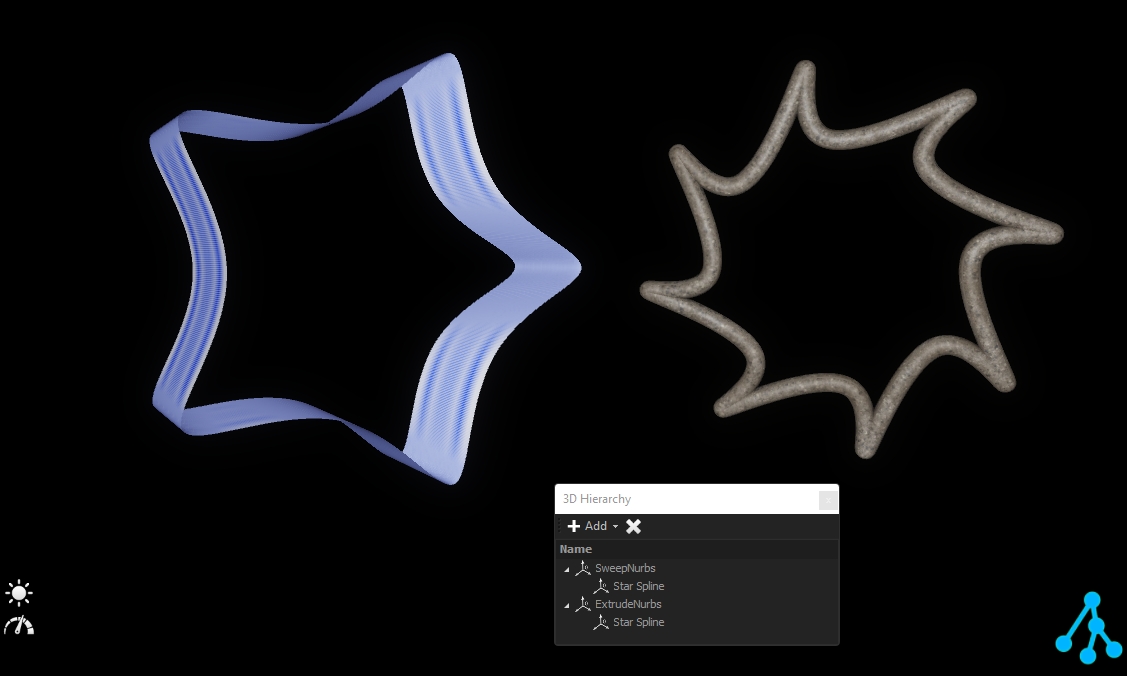

Example of Nurbs
Usage

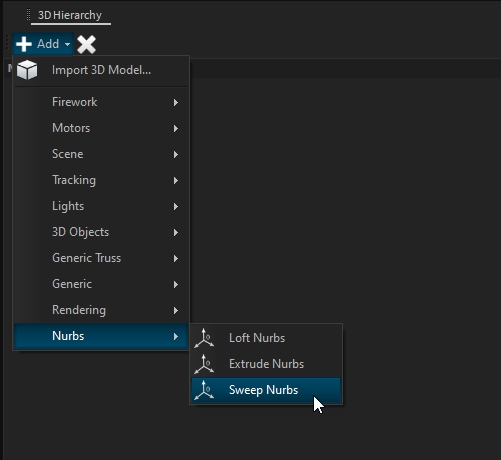

To add a nurbs feature from the 3D Hierarchy, click on "Add" and select your feature:
Nurbs features
All nurbs features require a spline to generate 3D geometry. The spline must be a child of the nurbs:
Sweep Nurbs
Sweep nurbs
Sweep nurbs will create tubes around the spline:

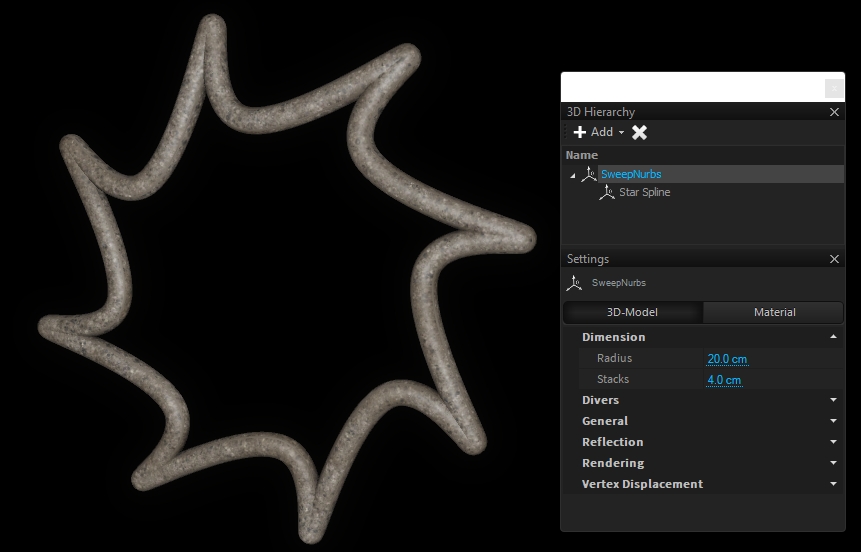

Sweep Nurbs - Settings
Its radius can be adjusted through the dimension properties.
Extrude nurbs
Extrude nurbs will extrude the spline vertically to generate a volume:

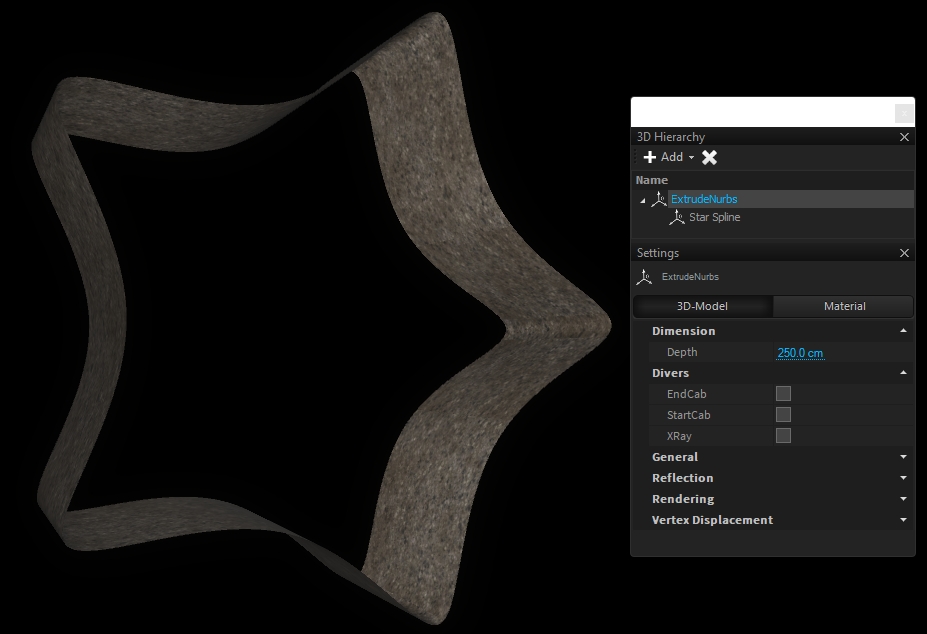

Extrude nurbs - Settings
Its depth can be adjusted through the dimension properties.
