Assign DMX universes to different ArtNet nodes or other Devices.

PreviousConnection example for recording DMX values via the 4 DMX XLR connectors of the vServer.NextScheduler

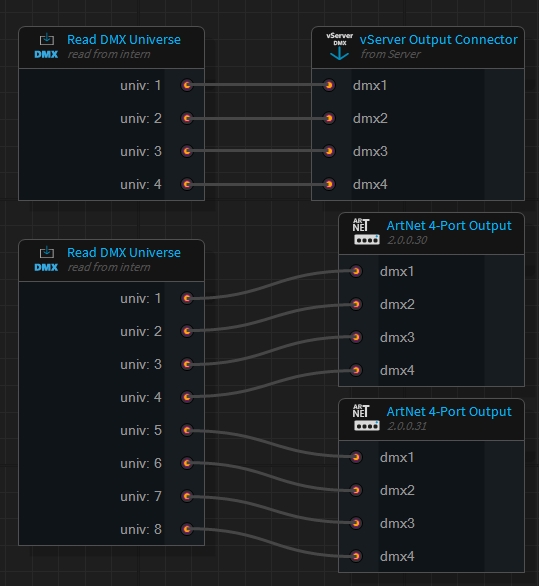

In parallel to the XML connections on the vServer, ArtNet nodes can also be used to transmit DMX values.

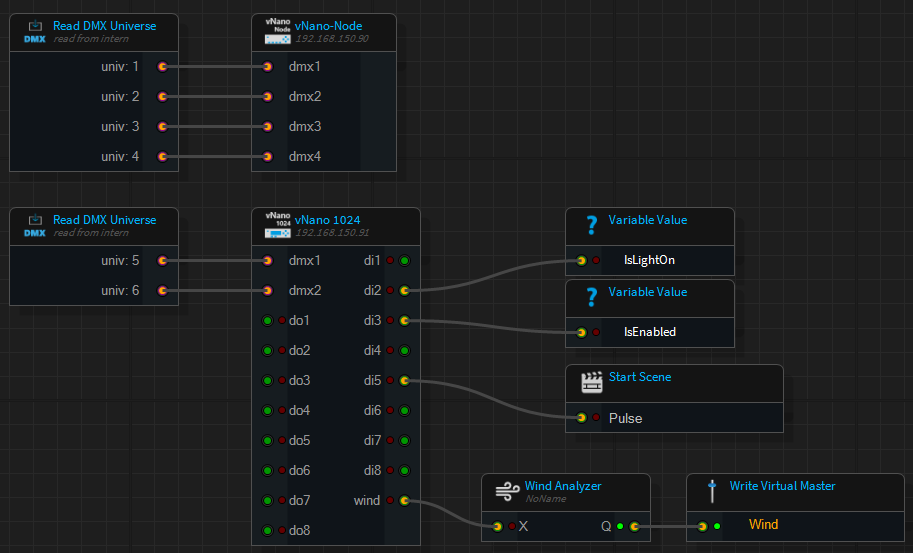

Instead of ArtNet nodes, Syncronorm nodes with RDM function can also be used. If you use a vNano/wecs 512 or a vnano/wecs 1024, you can also use the digital I/Os in addition to the DMX outputs.
