Laser Render Settings

The following settings are available for the Laser:
Divergence Simulation
Emulates divergence on hot-beams.
Intensity Factor
Overall intensity factor of atmospheric beams.
Laser Fog Fluid
Simulates a fluid-alike fog on atmospherics.
Smoke Scale
Changes the size of clouds traced.
Smoke Structure
Amount of structured clouds.
Ambient Light
Simulate a kind of fake ambient light.
Scanner Simulation
The Scanner simulation emulates the inertia of galvo scanners. The simulation is actually adjusted for 30K scanners.

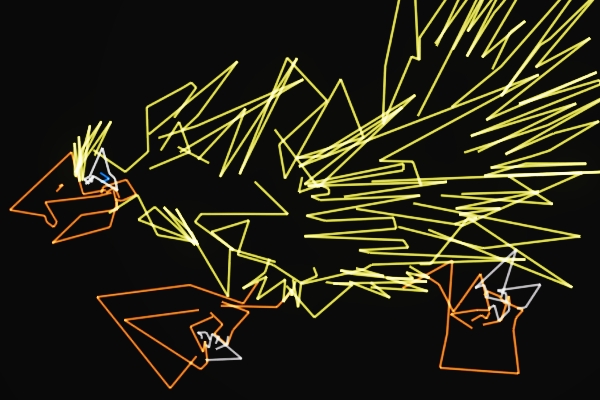

Input Signal

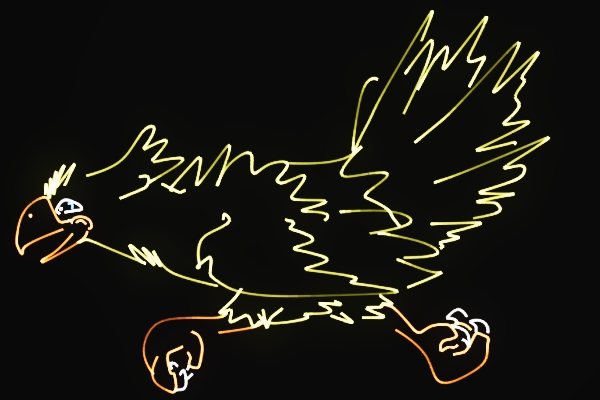

Output with Scanner simulation active
Sample laser graphic by Pieterjan Ruysch
