DMX Control

PreviousPBR MaterialNextDMX Matrix

Last updated 4 months ago

The diffuse color of the PBR Material can be directly controlled by values (RGB) from the internal DMX Buffer. This makes it possible to quickly realize LED surfaces/objects.

You can patch the DMX Matrix fixture with the RGB profile to control the color material emission.

Please note that the Universe value is zero-based.

This feature is deprecated and will be removed in a future version. Please use the DMX Matrix feature which has more possibilities.

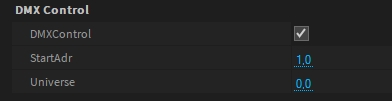

DMX control option on the PBR Material
